Here are some pictures of the rear bumper. They where used to figure out how to install an hitch for a bike rack
bulletRear view
bulletBumper cover removed
bulletBumper height measurement
bulletEvery thing removed

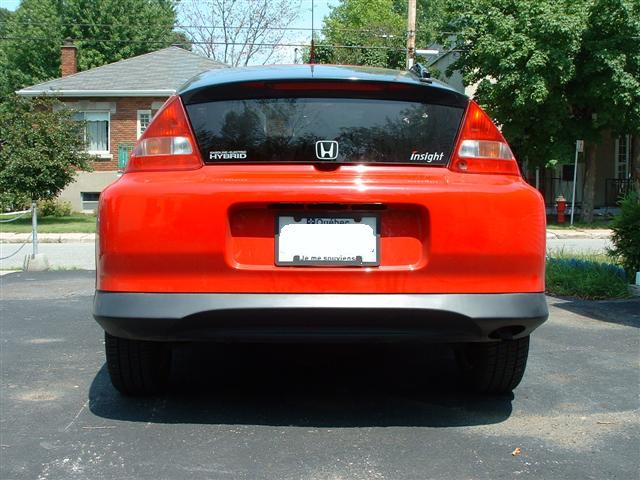

Rear view

View of the rear bumper

Back to Top

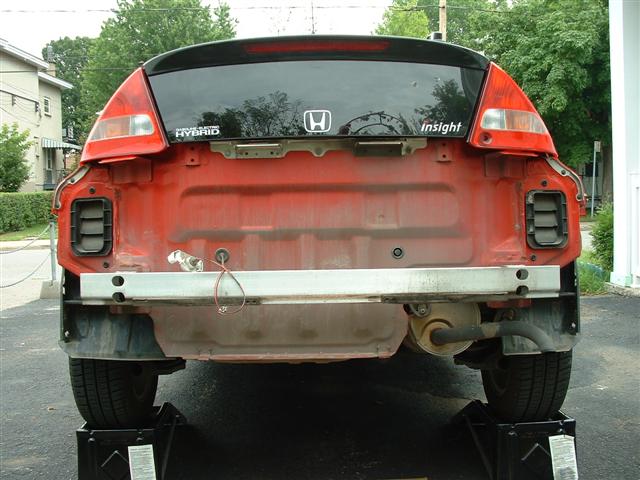

Bumper cover removed

The real aluminum bumper is about 13 inches below the glass window

Back to Top

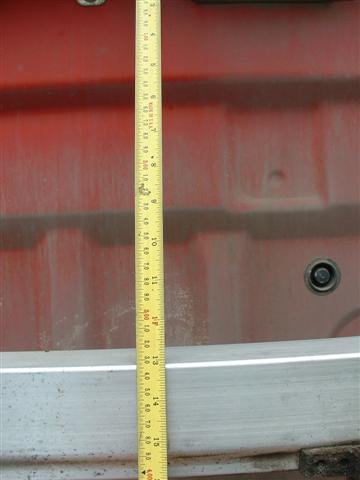

Bumper height measurement

The real aluminum bumper is about 13 inches below the glass window

Back to Top

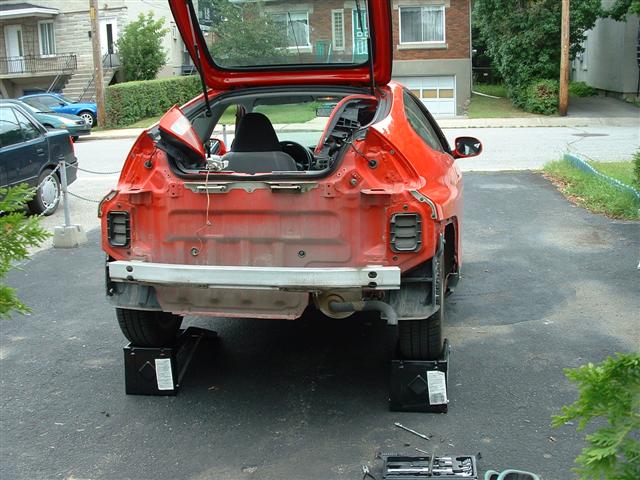

Every thing removed

Every thing removed. 3 bolts per rear lights. 3 bolts on the sides of the bumper (wheel well) and 4 bolts on top of the bumper
